Do You Need to Earth a Generator? A Grounding Guide for Home Generators
Clear, practical guidance on whether and how to earth a generator for home backup setups, with code considerations, methods, safety tips, and steps to hire a pro.
Do you need to earth a generator? In most home backup setups, proper grounding is recommended to reduce shock risk and ensure code compliance. Grounding a generator typically involves a grounding electrode system or bonding to the building grounding via a transfer switch, and should be performed by a qualified electrician following local codes. Always verify with your local authority before proceeding.
Grounding Fundamentals for Home Generators
Grounding is a safety strategy that provides a low-impedance path for any fault current, helping to prevent electric shock and equipment damage. For home generators, grounding is not just a nicety—it’s about ensuring that metal enclosures, transfer switches, and nearby metalwork do not develop dangerous voltage differences during faults. Distinctions matter: equipment grounding connects the generator’s chassis and exposed metal parts to a common earth path, while neutral bonding ties the neutral conductor to ground at the appropriate point in the system. When a generator is connected to a home through a transfer switch, the grounding path becomes part of the whole-house grounding network. Always treat any grounding work as a safety-critical task and follow local electrical code requirements. The goal is to create a predictable, low-resistance path to earth that remains intact even when power flows through the generator’s circuits.
Context: grounding methods can vary by generator type (portable vs standby) and by how the system is wired into the house. Many manufacturers provide grounding guidance, but local codes govern whether you use a dedicated grounding electrode and how you bond to the building ground. For homeowners, the safest and most reliable route is to plan grounding in the context of a fully installed transfer switch and an approved grounding path that connects back to the home’s electrical system.
In this section, we lay the groundwork for understanding why grounding matters and how it interacts with the broader electrical safety framework. The emphasis is on concepts and safety outcomes, not on risky操作.
Tools & Materials
- Grounding rod (grounding electrode)(Outdoors, driven into the earth according to local code; used to establish a grounding electrode system.)
- Copper grounding conductor (appropriate gauge)(Connects the grounding electrode to the generator or transfer switch; follow code guidance for conductor size.)
- Ground clamps(Secure connections to rod and conductor; corrosion-resistant outdoors preferred.)
- Transfer switch (if not pre-installed)(Provides a safe, code-compliant path for generator power into the home; ensure grounding is integrated through the switch as required.)
- Multimeter or ground tester(Used to verify continuity and proper grounding path after installation.)
- Safety gear (insulated gloves, safety glasses)(Personal protective equipment for all electrical work.)
- Outdoor-rated tools and wiring(All conductors and connectors should be rated for outdoor use; keep work area dry.)

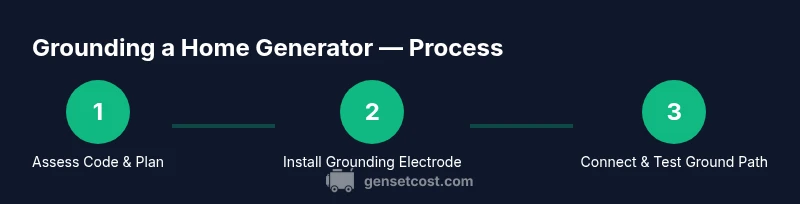

Steps
Estimated time: 2-6 hours
- 1
Review local requirements
Before touching any equipment, check your local codes and the generator’s manual to understand acceptable grounding methods and permit requirements. Confirm whether a grounding electrode system is mandated and whether bonding to the home’s grounding via a transfer switch is required. This initial check helps avoid rework later and reduces safety risks.
Tip: Document the code references and note any permits or inspections needed; having a written plan helps when you call a professional. - 2
Choose grounding method
Decide between installing a dedicated grounding electrode or bonding the generator to the house ground through the transfer switch. The method often depends on whether the generator is standalone or permanently connected, and on local code guidance. If you’re unsure, default to electrode grounding with professional validation.
Tip: If you already have a home grounding system, bonding through the transfer switch is typically the simplest and most common path for many setups. - 3
Install the grounding electrode
Position and install the grounding rod per code requirements, ensuring it’s in moist soil where possible for better conductivity. Attach the grounding conductor to the rod with a proper ground clamp, avoiding any metal coatings that could corrode. Plan routing to keep the conductor dry and protected.
Tip: Avoid driving the rod near underground utilities; verify area with local utility information first. - 4
Connect the grounding path
Run the grounding conductor from the electrode to the generator’s grounding terminal or to the transfer switch’s grounding lug. Maintain a continuous path without gaps or sharp bends. Ensure all outdoor connections are waterproof and protected from physical damage.
Tip: Use conductor routing that minimizes exposure to moisture and physical wear; zip-tie and shield where appropriate. - 5
Bond to building ground if required
If the local code or method requires it, bond the generator’s grounding path to the building’s grounding system through the transfer switch or service panel bonding connection. This ensures the safety path for fault currents across the entire electrical system. This step is typically best performed by a licensed electrician.
Tip: Do not mix bonding and isolation strategies; follow the code-prescribed approach for your setup. - 6
Test and verify
Use a ground tester or multimeter to verify continuity from the generator ground to the electrode and to the service panel ground. Confirm there are no open circuits and that the path maintains low resistance. Schedule a professional inspection if required by your jurisdiction.
Tip: Document test results and keep them with your maintenance records for future reference.
People Also Ask
Do portable generators require grounding?
Many portable generators do not require a separate grounding rod when used with a transfer switch and bonded to the building ground, but always follow the manufacturer’s instructions and local codes. Grounding paths should be explicit and consistent with the setup.
Most portable generators don’t need a separate grounding rod when installed with a transfer switch, but follow the manual and local codes.
What is the difference between grounding and bonding a generator?
Grounding provides a path to earth for fault currents, while bonding ties metal parts to the grounding system to minimize potential differences. In many home setups, both concepts work together to ensure safe operation.
Grounding routes fault currents to earth; bonding connects metal parts to that grounding path to equalize voltage and reduce shock risk.
Can I ground my generator to my home's grounding system?
Yes, typically through a properly installed transfer switch or at the service panel, ensuring a continuous, code-compliant path. Procedures vary by system and code, so professional guidance is advised.
You can bond to your home’s ground through the proper transfer switch or panel, but check code requirements first.
Is a transfer switch required for grounding?
A transfer switch is not strictly required for grounding, but it is the standard and safest method to connect a generator to a home’s electrical system and to establish a proper grounding path. Always follow code guidance.
A transfer switch isn’t mandatory for grounding, but it’s the common, safest way to hook up and ground a generator.
What safety steps should I take before grounding?
Power should be off and the generator disconnected from loads. Use insulated tools, PPE, and outdoor-rated equipment. Confirm that all connections are dry and secure before testing continuity.
Turn off the generator, wear PPE, and ensure all connections are dry before testing.
Watch Video
Key Takeaways
- Grounding reduces shock risk and improves safety for generator use.
- Choose an approved grounding path: electrode or bonding via transfer switch.
- Involve a licensed electrician to install and verify the grounding path.
- Follow local codes and permit requirements for compliance.
- Test continuity after installation to confirm a solid path.
