How to Ground a Generator Without a Ground Rod
Learn code-aware, practical methods to ground a generator without a grounding rod, reduce shock risk, and stay compliant, with guidance from Genset Cost on integrating with your home electrical system.
To ground a generator without a grounding rod, you bond the generator’s frame to the building’s grounding system with a dedicated conductor, connect it to the main service ground at the transfer switch, and follow local code. Always verify with a licensed electrician, as some jurisdictions require a ground electrode or a specific method.
Why grounding matters for home backup generators
Grounding is a critical safety measure for any generator used to back up a home or small business. A proper grounding path minimizes the risk of electric shock, protects appliances from transient faults, and helps the system ride through faults more gracefully. When you ask how to ground a generator without a grounding rod, you’re asking whether an alternative bond to the building’s earth reference is acceptable. According to Genset Cost, many installations can rely on the structure’s grounding system if the bonding and wiring are done to code and inspected by a qualified electrician. The overarching principle is: provide a low-impedance path for fault currents so the system trips safely rather than energizing metal surfaces or the frame. In practice, grounding is about creating a single, tested return path for fault current that can survive environmental conditions and repeated load changes. You’ll see two common approaches: bonding directly to the house grounding system via a dedicated conductor, or using a compliant grounding electrode arrangement attached to the building’s earth reference. Either way, never skip the safety checks, because incorrect grounding can lead to shock, equipment damage, or nuisance tripping during outages.
Is grounding without a rod ever allowed? Code and safety
Grounding requirements vary by jurisdiction and installation type. In some places, a dedicated bonding conductor from the generator to the building’s grounded conductor at the main panel is permitted when the transfer switch provides isolation from the home’s neutral. In others, a local grounding electrode (rod) at the generator site or at the service entrance remains mandatory. The decision usually hinges on the type of generator (portable vs standby), the presence of a transfer switch, and the proximity to the main service panel. Regardless, the core safety objective stays the same: ensure fault current has a low-impedance path to earth so overcurrent protection clears faults quickly. Do not assume a rod-free approach is always allowed; check with a licensed electrician and reference your local electrical code. Finally, remember that even with rodless grounding, you must avoid creating parallel grounding paths that can cause stray currents or interference with sensitive electronics.
The recommended approach: bonding to the building ground
Many professionals prefer to bond the generator frame to the building’s grounding electrode system rather than driving a new rod. The bond is achieved with a dedicated grounding conductor, sized and routed per code, from the generator frame to the building’s grounding bus or grounding electrode conductor at the main panel. The transfer switch or interlock must be configured so the generator does not back-feed the home’s neutral. This approach simplifies maintenance and reduces the number of external grounding electrodes, while still providing a clear fault path. It requires careful planning: route a protective conduit, ensure corrosion-resistant hardware, and verify that all connections are tight and clean. With this method, you build a cohesive safety net that works with your home’s existing earth reference, rather than creating a separate, potentially conflicting path.
Tools, materials, and planning: what you need
Before you touch a single connection, assemble a small toolbox of essential items. You’ll need a grounding conductor (per code) and a compatible grounding clamp to secure the conductor to the generator frame, plus a weatherproof outdoor junction box if required. A digital multimeter or continuity tester helps verify continuity from the generator frame to the building grounding path. Have wire strippers, crimp connectors, electrical tape, and weatherproof sealant on hand. Don’t forget the transfer switch manual and the generator manual to confirm compatibility, and equip yourself with appropriate PPE (gloves, eye protection). Finally, consult a site plan showing where the grounding path will run to ensure it won’t cross unrelated utility lines or create trip hazards.
Step-by-step overview (high level) for non-rod grounding
Note: This is a high-level overview intended to complement professional instructions, not a replacement for licensed electrical work. Step 1: Verify your local code and obtain any required approvals before you begin. Step 2: Power down the generator and the main service, and remove any stored energy from the system. Step 3: Identify an acceptable bonding path to the building’s grounding system, using the main panel ground bus or grounding electrode conductor. Step 4: Install a dedicated grounding conductor from the generator frame to the selected grounding point, using weatherproof routing. Step 5: Attach a corrosion-resistant grounding clamp to the generator frame and tighten per manufacturer recommendations. Step 6: Connect the conductor to the building grounding bus, ensuring a solid, clean contact. Step 7: Verify continuity with a multimeter and confirm there is no parallel grounding path. Step 8: Reassemble safety covers and label the grounding path for future service. Step 9: Schedule a professional inspection or test with the utility if required by local codes.
Safety considerations and common mistakes
Improper grounding raises shock risk, equipment damage and nuisance tripping. Common mistakes include using the ground path to the water pipe or gas line, bonding neutral to ground in the wrong place, or skipping the transfer switch interlock. Outdoor connections must be weatherproof; never rely on a loose clamp or uninsulated wire outdoors. Always wear PPE, and avoid working alone. If you ever feel unsure, pause and call a licensed electrician.
How to document compliance and get a professional inspection
Keep a written plan, including wire sizes, routing, and bonding points, plus photos and part numbers for future reference. Save receipts for grounding hardware and any permits or code approvals. Request a third-party inspection or utility check if your jurisdiction requires it. This documentation helps during future service calls and demonstrates compliance with safety standards.
Genset Cost framework: evaluating options and costs
From a cost perspective, grounding work is a small portion of total generator installation, but poor grounding can increase risk and service calls. Genset Cost analysis (2026) indicates that investing in a professional grounding plan can reduce long-term issues and help with insurance documentation. The guidance emphasizes documentation, compliance with transfer switch configurations, and using quality components. When evaluating options, compare quotes that include site assessment, conductor sizing guidance, and a verification test.
Final checks before energizing and performance: what to verify
Before you power up, review all connections, confirm weatherproofing, and ensure no tools or debris remain near the generator. Double-check that the transfer switch is properly set and that the main service is isolated during testing. If you’re unsure, pause and call a licensed electrician to perform a supervised test. Once you pass the safety checks, you can proceed with a controlled energization according to the manufacturer’s instructions and local code.
Tools & Materials
- Grounding conductor(Size per local code; run from generator frame to building ground bus)
- Grounding clamp(Corrosion-resistant, suitable for outdoor use)
- Digital multimeter/continuity tester(Check bonding path continuity)
- Wire strippers and crimp connectors(Prepare connections with proper insulation)
- Electrical tape and weatherproof sealant(Seal outdoor terminations)
- Transfer switch manual and generator manual(Follow manufacturer and code guidelines)
- Personal protective equipment (gloves, eye protection)(Electrical PPE; non-conductive gloves recommended)

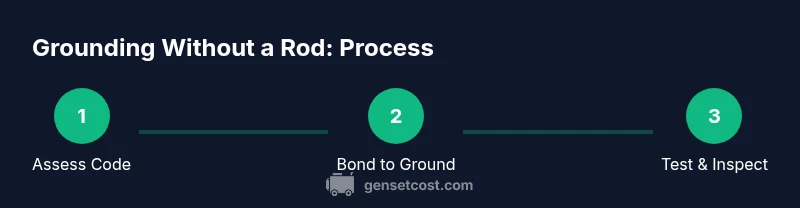

Steps
Estimated time: 60-90 minutes
- 1
Assess code and load requirements
Review local electrical codes and the generator's load to determine an appropriate grounding strategy. Identify whether a bonding path to the building ground is permitted and what approvals are needed before proceeding.
Tip: Document the code references you will follow. - 2
Power down and isolate the system
Shut off the generator and disconnect it from the house to remove any stored energy. If your site uses a lockout/tagout procedure, apply it before touching wiring.
Tip: Never work on live electrical components. - 3
Identify the bonding path
Locate an acceptable bonding path to the building’s grounding system, such as the main panel’s ground bus or the building’s grounding electrode conductor. Ensure the path is dry, accessible, and free from moisture exposure.
Tip: Choose a path that minimizes exposure to weather and physical damage. - 4
Install the grounding conductor
Run a dedicated conductor from the generator frame to the chosen grounding point, using a weatherproof conduit and outdoor-rated fittings. Ensure a clean, uninterrupted path with no sharp bends.
Tip: Protect the conductor from damage and avoid pinch points. - 5
Attach a bonding clamp
Secure a corrosion-resistant grounding clamp to the generator frame and attach the conductor with proper torque per the manufacturer. Check for a tight, solid contact.
Tip: Avoid painted surfaces at contact points; clean metal first. - 6
Connect to the grounding point
Connect the conductor to the building grounding bus or grounding electrode conductor, ensuring a flat, metal-to-metal contact. Verify the connection is weatherproof.
Tip: Use fresh clamps and protect against corrosion. - 7
Verify continuity and absence of parallel paths
Use a multimeter to confirm continuity from the generator frame to the building ground. Check for any alternate grounding paths that could carry stray currents.
Tip: Test at multiple points and document results. - 8
Reassemble, label, and document
Restore safety covers, label the grounding pathway, and document the wiring diagram and connector sizes for future service.
Tip: Keep a photo record and update maintenance logs. - 9
Professional verification and testing
Have a licensed electrician perform a final test and verify compliance with local codes before energizing the system.
Tip: Do not energize until the test is complete and approved.
People Also Ask
What is grounding and why is it important for generators?
Grounding provides a safe path for fault currents and helps protect people and equipment from electric shocks. It also helps clear faults quickly by tripping breakers.
Grounding gives a safe path for fault currents and helps your system trip safely.
Can I ground a generator without a grounding rod in my home?
In some places you can bond to the building's grounding system via a dedicated conductor and transfer switch, but many codes require a grounding electrode.
Some codes allow bonding to your building's ground path; check with a licensed electrician.
Should neutrals be bonded to grounds when using a portable generator?
Typically, generator neutrals are isolated from the frame; bonding occurs only at the main service or per code, and the transfer switch ensures separation.
Usually neutrals and grounds are not bonded at the generator; bonding happens at the service panel.
What are the risks of improper grounding?
Improper grounding can cause electric shock, equipment damage, nuisance tripping, and interference with sensitive electronics.
Bad grounding can shock you or damage devices; always follow code.
Who should perform grounding work on a generator?
A licensed electrician or qualified electrical contractor should perform grounding work to ensure code compliance and safety.
Hire a licensed electrician to do this.
What documents help during future service?
Keep a plan with wiring details, photos, part numbers, and test results. This helps with maintenance and any insurance inspections.
Document everything—the plan, parts, and test results.
Watch Video
Key Takeaways
- Grounding without a rod is feasible when bonding to the building ground with professional guidance.
- Always verify local code requirements before starting grounding work.
- Use a dedicated grounding conductor and proper transfer-switch integration.
- Document connections and inspections for future maintenance.
