Generator Not Putting Out Power: Troubleshooting Guide for Home Backup Generators
A comprehensive, step-by-step guide to diagnose and fix a generator not putting out power, with safety-first checks, diagnostic workflow, and maintenance tips to prevent future outages.
Most common causes are a tripped circuit, a faulty transfer switch, or insufficient fuel. Quick fix steps: check the main transfer switch and any safety interlocks, reset any tripped breakers, verify the generator is running and properly wired, and confirm output at the transfer switch or outlet. If power still won’t arrive, call a licensed technician.
Likely culprits in order of ease
When generator not putting out power, the fastest path is to test the simplest explanations first. According to Genset Cost, most outages are caused by issues at the edge of the system rather than a failed engine. The top suspects, in order of ease to verify, are: 1) a tripped circuit or safety interlock, 2) a shut-off or incorrect setting on the transfer switch, 3) insufficient or contaminated fuel, 4) a dead battery or starting circuit, and 5) loose or corroded wiring between the generator and house. By verifying these items first, homeowners and property managers can often restore power quickly without a service call. Each item is described below with quick checks you can perform safely. If you encounter bright sparks, hot surfaces, or abnormal smells, stop immediately and call a licensed technician. Safety remains the top priority when diagnosing a generator problem.
Safety-first checks you can perform before anything else
Before you touch any equipment, ensure you and others are safe. Turn off the main disconnect, remove jewelry, and wear eye protection if needed. If you smell fuel or hear unusual noises, stop and ventilate the area. Start with the two simplest checks: verify the main transfer switch is in the correct position and confirm the generator is at idle or running in automatic mode. Refrain from overfilling fuel or starting the engine in enclosed spaces. If in doubt, consult the manual or a professional.
Core checks: fuel supply, battery, and connections
A generator that won’t produce power often has a fuel or electrical path issue. Begin by confirming a clean fuel supply: check for water or sediment in the tank, replace old fuel, and ensure the fuel valve is open. Inspect the battery for corrosion and ensure the cables are tight. Next, examine the connection points between the generator, transfer switch, and main service panel. Loose clamps, damaged conductors, or oxidized terminals can prevent energy transfer from reaching the loads.
Diagnostic flow: a practical, repeatable approach
Adopt a repeatable flow to identify the fault quickly. Start with the symptom: generator starts but nothing feeds the house, or it never starts at all. Check safety interlocks and then test whether the generator is delivering voltage to the transfer switch. If voltage exists, but power doesn’t reach the panel, suspect wiring or wrong transfer switch setting. Document each step and verify after each fix.
Step-by-step: quick fixes you can perform
- Safety prep and gear: Put on gloves and eye protection; disconnect loads from the generator. 2) Verify fuel: check level and quality; top up with fresh fuel if needed. 3) Check battery and starting circuit: clean terminals and confirm battery voltage. 4) Check transfer switch status: ensure proper position and interlocks engaged. 5) Validate generator output: measure voltage at the output terminal or test with a known load. 6) Inspect wiring: look for loose connections and damaged insulation. 7) Test with a known-good load: try a small, simple appliance to confirm power. 8) Document findings and plan next steps: if the issue remains, schedule professional service.
Common electrical and fuel issues in detail
Fuel issues can masquerade as electrical faults. Ethanol-blended fuels can degrade quickly and leave varnish in fuel jets, starving the engine of a stable idle. Water in fuel is a silent killer for gas engines and can stall ignition. Contaminants or degraded fuel can cause intermittent loss of voltage. Electrical issues often trace back to the transfer switch: a misadjusted setting, a failed interlock, or a loose wire at the junction with the main panel. Inspect air filters, spark plugs (if applicable), and battery health. A clean, dry environment supports reliable starts and steady output.
When to call a professional and what to expect
If basic checks do not restore power, it’s time to contact a licensed technician. A pro can safely isolate the transfer switch, inspect control boards, and verify compatibility between the generator and the home electrical system. Expect them to test under load, confirm interlocks are functioning, and replace faulty components if needed. Pro service minimizes risk and ensures compliance with local electrical codes.
Maintenance tips to prevent future power outages
Regular maintenance pays off. Schedule seasonal inspections, replace fuel and air filters, and run the generator under load periodically to avert varnish buildup and stagnation. Keep a clean, dry enclosure and protect battery terminals from corrosion. Maintain accurate records of service, and review warranty terms so you know when professional care is required.
Steps
Estimated time: 60-90 minutes
- 1
Safety prep and gear
Put on PPE, disconnect all loads, and ensure you have a clear, well-ventilated workspace. Verify you have the generator's manual handy.
Tip: Never work on live electrical components; isolate power first. - 2
Verify fuel supply
Check fuel level and inspect fuel quality. If fuel is old or appears cloudy, drain and replace with fresh, appropriate fuel. Ensure fuel valve is fully open.
Tip: Never mix fuels or run with contaminated gas. - 3
Check battery and starting circuit
Inspect battery terminals for corrosion, clean as needed, and confirm battery voltage meets the manufacturer’s spec. Ensure starter connections are secure.
Tip: Weak batteries are a common cause of no-start conditions. - 4
Check transfer switch status
Make sure the transfer switch is in the correct position, safety interlocks are engaged, and there are no locked-out conditions.
Tip: A mis-set switch can prevent power transfer even if the generator runs. - 5
Test generator output
With loads disconnected, measure voltage at the generator output or at the transfer switch input to confirm generation.
Tip: Use a properly rated multimeter and follow the manual’s testing procedure. - 6
Inspect wiring between generator and panel
Look for loose, damaged, or corroded wires; reseat and secure any loose clamps. Check for signs of overheating.
Tip: Avoid pinching cables or using damaged insulation. - 7
Test with a known load
Connect a low-wattage, safe load (like a lamp or heater) to verify the system can deliver power under controlled conditions.
Tip: Never overload the generator during testing. - 8
Document and plan next steps
Record findings, photos, and readings. Decide whether a minor fix suffices or if professional service is needed.
Tip: A written plan reduces repeat visits.
Diagnosis: Generator not putting out power
Possible Causes
- highEmpty or low fuel level
- highTripped or faulty transfer switch
- mediumBlown main circuit breaker or safety interlock
- lowLoose or corroded connections between generator and transfer switch
Fixes
- easyCheck fuel level and quality; top up or replace if contaminated
- easyReset any tripped breakers and safety interlocks; re-test
- mediumInspect and reseat connections between the generator, transfer switch, and main panel
- mediumTest or replace the transfer switch or control module if needed
- hardIf issues persist, schedule professional service to diagnose control electronics
People Also Ask
Why is my generator not putting out power after a power outage?
Outages often stem from a tripped breaker, a misadjusted transfer switch, or fuel issues. Start by checking the transfer switch and breakers, then verify fuel quality and the generator’s output at the switch. If power still doesn’t reach the loads, there may be a wiring or control-board fault.
Most outages come from the transfer switch or fuel problems. Check the breakers and switch position first, then test the generator’s output. If it still fails, a professional check is advised.
Is it safe to reset the transfer switch myself?
Resetting a transfer switch can be safe if you disconnect all loads, follow the manual, and ensure the area is well ventilated. If you’re unsure, avoid handling high-voltage components and call a licensed electrician or generator technician.
You can reset it if you follow the manual and stay away from live parts. When in doubt, call a professional.
What should I check first if there’s no power at outlets?
First verify that power is reaching the transfer switch and that the main breaker isn’t tripped. Then test whether the generator is producing voltage at its output. If voltage is present at the generator but not at the outlets, the issue is likely wiring or the transfer switch.
Check the transfer switch and breakers first, then test the generator’s output. If voltage isn’t reaching the outlets, call a pro.
Can bad fuel cause no power?
Yes. Contaminated fuel, water in the tank, or varnish buildup can clog jets and prevent the engine from delivering power. Replace old fuel, drain if necessary, and ensure the fuel is clean before testing again.
Bad fuel can stop power. Replace contaminated fuel and test again.
When should I replace a generator?
If maintenance cannot resolve recurring failures, efficiency is below acceptable levels, or parts become unavailable, replacement may be warranted. Consult a professional to assess reliability and total cost of ownership.
If problems persist after service, it may be time to replace the unit.
Watch Video

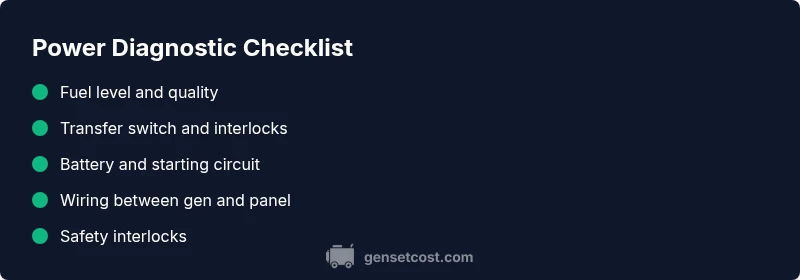

Key Takeaways
- Test fuel level and switch safety first
- Reset breakers and interlocks before deeper checks
- Inspect transfer switch and wiring for faults
- Schedule professional help if issues persist
- Maintain regular generator maintenance to prevent outages
