How to Install a Generator Interlock Kit

What is a generator interlock kit?

A generator interlock kit is a device that mounts to a home's electrical panel to coordinate the connection of a portable generator with the utility mains. When installed correctly, the interlock prevents the main breaker from energizing the panel while the generator is supplying power, eliminating the risk of backfeed to the utility. For homeowners learning how to install generator interlock, the key idea is to create a safe, mechanically enforced separation between the line side and the generator side of the panel. This approach allows you to energize selected circuits without installing a separate transfer switch. According to Genset Cost, interlock kits are a cost‑effective safety solution that can fit many common panel layouts, provided you choose the right kit for your panel model and amperage. In short, interlocks simplify switch‑over during outages while keeping you compliant with many local codes.

When to use an interlock kit vs a transfer switch

Interlock kits are typically chosen when homeowners want a simpler, lower‑cost solution for backing up a small set of critical circuits. They are often easier to install than full transfer switches and do not require a dedicated transfer switch enclosure or complex rewiring. However, they offer limited scalability compared with a transfer switch, which may be preferable for larger homes or more extensive backup loads. If you’re evaluating options, consider your load requirements, climate, panel compatibility, and how often you expect to switch between utility and generator power. Genset Cost notes that for most standard homes, an interlock kit provides a practical balance of safety, cost, and ease of use, especially when only a subset of circuits needs backup power.

Compliance and safety considerations

Electrical work of this nature carries risk and is subject to local codes and electrical standards. Before starting, verify whether a permit is required and arrange for an inspection if necessary. Always follow the interlock kit manufacturer’s installation manual, which includes essential details on panel fit, torque specifications, and wiring diagrams. Wear appropriate personal protective equipment such as insulated gloves and safety glasses, and ensure the main power is OFF before handling any panel components. If you’re unsure about any step, consult a licensed electrician. In the context of safety and compliance, the guidance from the Genset Cost team emphasizes adhering to manufacturer instructions and local regulations to avoid code violations and safety hazards.

Panel compatibility and choosing a kit

Not all interlock kits fit every panel. Start by identifying your panel make, model, and main breaker amperage, then match these details with a kit that is explicitly listed as compatible. Check customer reviews and the installer’s manual for fit notes and required clearances. Consider whether you want surface‑mount or flush‑mount installation, the availability of space for the kit’s mounting plate, and how the kit affects panel warranty. If you own a newer or unusual panel, you may need a specific mounting frame or adapter. The right kit should align with your panel’s bus bars and leave room for the main breaker handling. As you shop, confirm return policies and warranty terms in case of fit issues.

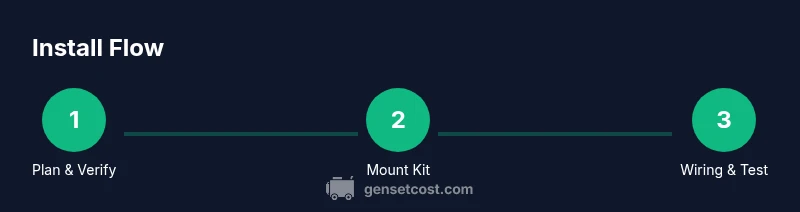

Step-by-step overview of the installation flow

While the detailed, step‑by‑step actions are listed in the dedicated STEP-BY-STEP section, a high‑level overview helps with planning:

• Confirm panel compatibility and obtain required permits.
• Power down safely and remove the panel cover following manufacturer instructions.
• Position and secure the interlock kit on the panel frame or door.
• Wire the interlock per the diagram, ensuring a proper separation of line and load sides.
• Reinstall the panel cover, restore power, and perform a controlled test with a generator in place.
• Document the installation and plan for inspection if required by local codes.

Mounting the interlock kit on the main panel

Mounting the interlock kit involves aligning the kit’s mounting plate with the panel door or frame, then securing it with the supplied screws. The mounting location should provide access to the main breaker and load lugs while avoiding interference with other breakers. Use a level to ensure the plate sits flat and parallel to the panel surface. If your kit includes a template, tape it to the panel and mark the screw positions before drilling. Double‑check that there is enough clearance for the main breaker to operate without hitting the interlock handle when switching between utility and generator power. Loose mounting can cause misalignment and improper operation, so secure the kit firmly.

Wiring the interlock kit with the generator and panel

Wiring requires following the kit’s wiring diagram precisely. In many cases, the interlock provides a mechanical barrier and a simple wiring connection between the main breaker and a dedicated generator input channel. The key is to ensure the grid side is disconnected whenever the generator is feeding the panel, preventing backfeed. Do not attempt to improvise wiring or bypass components. If you’re unsure about the terminal points, consult the manufacturer diagram or a licensed electrician. After wiring, verify that all connections are tight and free of corrosion or insulation damage that could cause arcing.

Testing and verification after installation

Testing should occur only after the panel is reassembled and all connections are secured. Start by turning the main breaker OFF, then simulate a power outage while the generator is connected, ensuring the generator powers only the designated circuits. Use a non‑contact voltage tester to confirm no backfeed to the utility. Observe the interlock handle movement to confirm it properly prevents energizing the main breaker when the generator is supplying power. Document test results, then schedule a professional inspection if required by code or warranty terms.

Common mistakes and how to avoid them

Common errors include selecting an incompatible kit, misaligning the mounting plate, improper torques on mounting screws, and bypassing wiring diagrams. To avoid these, always verify compatibility before purchase, use a torque screwdriver to meet manufacturer specifications, and work slowly with a printed wiring diagram visible during the process. Never force a component or skip a step. Remember that even small errors can create safety risks or void warranties.

Maintenance and future-proofing

After installation, perform a periodic inspection and test, at least annually or after any service to the panel or generator. Check mounting integrity, wiring insulation, and the operation of the interlock handle. Keep a copy of the installation documentation and photos for future reference. If you upgrade the panel or generator, re‑evaluate compatibility and consider updating the interlock kit if necessary. Regular maintenance helps preserve safety, compliance, and reliability over the life of the backup system.

What to do if you're not comfortable doing electrical work

If any step feels uncertain, stop and hire a licensed electrician. Electrical work inside a main panel carries risk of shock, arc flash, and fire if done improperly. An electrician can verify panel compatibility, ensure proper permits, perform the wiring to code, and test the system safely. Prioritizing professional installation protects your home and keeps warranty and insurance intact.
