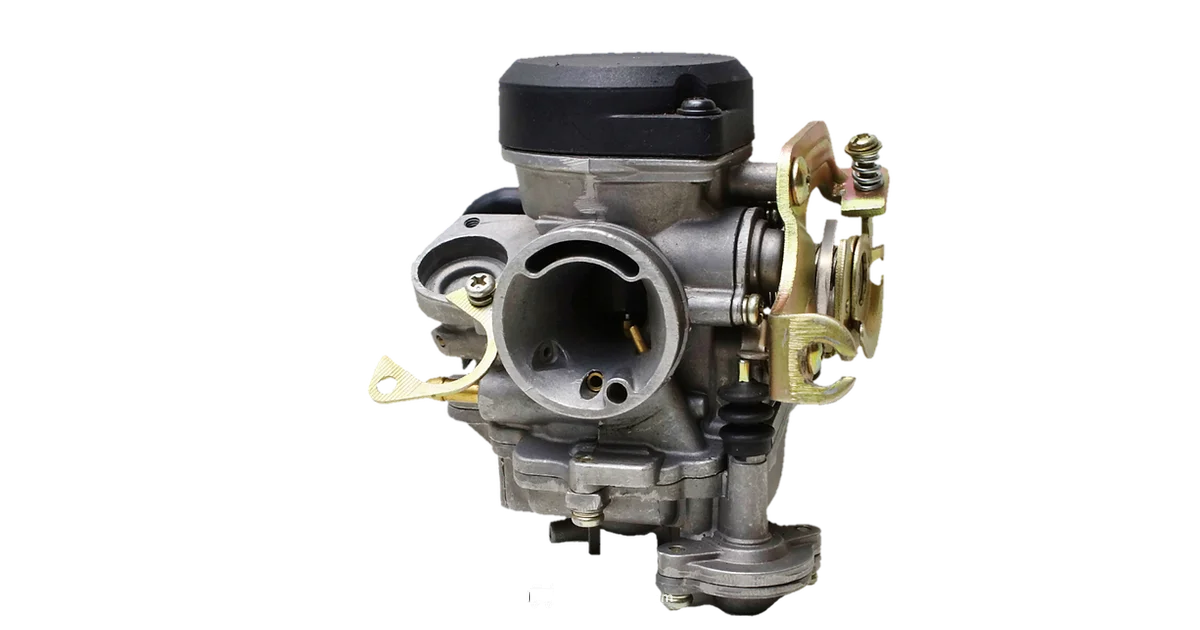

How to Remove Carburetor from Briggs and Stratton Generator

Safety and prep for carburetor removal

According to Genset Cost, removing the carburetor from a Briggs and Stratton generator should start with thorough safety prep. Ensure the engine is completely off, the spark plug is disconnected or the battery is disconnected, and the fuel valve is closed. Work in a well-ventilated space away from open flames or sparks, and wear safety glasses and gloves. Have a catch container ready for any residual fuel, and keep rags on hand for spills. Label hoses and linkages as you go to simplify reassembly. Different Briggs and Stratton models use varying carburetor styles and mounting patterns, so always consult your model’s manual or service sheet before starting. If you’re unsure about the exact carburetor type, pause and confirm model numbers on the tag under the air filter cover. The Genset Cost team emphasizes patience and organization—rushing can damage seals or misalign linkage.

In practice, set aside a clean workspace, use good lighting, and plan time for inspection after removal. Having a basic fuel/oil safety plan and a way to dispose of old parts keeps the process smooth and reduces the chance of accidentally starting the engine during disassembly.

Understanding Briggs & Stratton carburetors and model differences

Briggs and Stratton engines have several carburetor configurations across their generations. Some Briggs & Stratton units use float-type carburetors with a bowl and needle valve, while others employ diaphragm or fuel pump variants. The mounting hardware, gasket layout, and linkage geometry can differ even within the same model family. Before attempting removal, identify the carburetor type by inspecting the carb body, bowl shape, and the presence of a diaphragm chamber. Knowing whether you have a single-bolt or multi-bolt mounting pattern helps you plan the safe sequence for removing screws. Always check for a replacement gasket or seal kit to accompany removal, because reusing worn gaskets can cause air leaks and poor performance. If your engine uses an air intake pre-cleaner or an adapter, factor that into your plan so you won’t have to redo steps later. The takeaway is to compare what you see with your manual’s diagrams to avoid missteps during disassembly.

Understanding these differences also informs whether you should clean the carburetor in place or remove it for bench cleaning. Some Briggs & Stratton carburetors are easier to remove with the air cleaner assembly detached, which reduces the risk of bending levers. Remember that model-specific instructions trump generic guidance, so use the exact service sheet for your unit to ensure compatibility.

Gather the right tools and materials

Having the right tools before you start saves time and reduces the risk of damage. A well-curated toolkit makes carburetor removal straightforward and repeats fewer trips to the tool bench. You’ll typically need a socket wrench set, assorted screwdrivers (Phillips and flat-head), needle-nose pliers, and a fuel-rated catch container for spills. Include a small parts tray to keep screws and small components organized, plus rags or lint-free towels for cleaning surfaces. Carburetor cleaner or a safe solvent helps loosen varnish and deposits, while a soft brush keeps the carb body from scratching. If you plan to replace gaskets, have a gasket kit on hand. A marker or labeling tape is invaluable for tracking linkage and hose positions. Safety gear—gloves and eye protection—rounds out the essentials. Finally, have a camera or phone handy to document steps for accurate reassembly. With the right tools and a clean workspace, you’ll minimize the chance of losing small parts and ensure a smooth procedure.

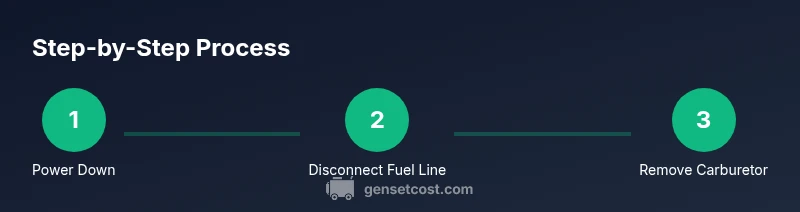

Step-by-step overview of the removal process

Removing a Briggs & Stratton carburetor follows a logical sequence designed to protect components and ensure reliable reassembly. The process generally includes shutting down the unit, draining or isolating fuel, removing air intake components, disconnecting throttle and choke linkages, detaching the fuel line, unbolting the carburetor from the intake manifold, and carefully lifting the carb off with gasket intact. Throughout, maintain orientation by labeling hoses and noting bracket positions. If the carburetor sits on a sensitive gasket, take care not to pry the gasket or tilt the carb aggressively. After removal, inspect the intake surface and gasket seating area for wear or debris. Decide whether to bench-clean the carb or send it for a professional rebuild. A careful approach reduces the risk of damaging the carburetor body, the manifold, or the mounting studs. Real-world tip: take multiple photos at each stage to guide reassembly and confirm the correct orientation of any linkage during final steps.

Disassembly considerations: mounting plate, gaskets, and seals

Disassembly requires attention to the mounting plate and carb-to-intake gasket. If you encounter a stubborn bolt, do not force it; apply penetrating oil and back it out slowly. Keep track of each screw’s length and threading, as some models use different sizes for the top cover, mounting flange, and bowl. The gasket between the carb and intake is a common wear item; if it’s cracked or warped, replace it before reassembly. When removing, avoid bending the intake needle valve or lever arms. You may find a small metering diaphragm or clip inside some designs—note their position and handle them gently. After removing the carb, inspect all mounting studs for corrosion or mushroomed heads. If you see any damage, plan to replace the studs or consult a service manual before continuing. Regular inspection during this stage prevents leaks and ensures a clean seating surface for reinstallation.

Cleaning, inspection, and assessing the carburetor for repair or replacement

Bench cleaning helps restore carburetor performance. Dismantle only as necessary to access jet ports and passageways. Use carburetor cleaner and a soft brush to dislodge varnish and gum from the fuel passages, jets, and throttle body. Do not soak plastic components in aggressive cleaners; some carburetors use plastic parts that can deform. Inspect the needle valve, float, and jet sizes for wear. If fuel has deteriorated seals or the float is punctured, replace those parts or the entire carburetor. Check the idle circuit and choke linkage for smooth operation. After cleaning, dry the carburetor completely before reinstalling. If you notice corrosion on any metal parts, consider replacing the carburetor body or purchasing a service kit. Finally, recheck the gasket seating surface for flatness to ensure a proper seal.

Reassembly basics and reinstallation checklist

Reassembly should follow the reverse order of removal with a focus on correct orientation. Begin by reinstalling mounting hardware finger-tight, then torque to spec if you have the manufacturer’s guidelines. Re-seat the gasket carefully; a damaged gasket can cause air leaks and poor engine performance. Reattach the intake manifold components, then reconnect throttle and choke linkages, labeling if needed. Reconnect the fuel line with the fuel valve open only after the carburetor is securely mounted to avoid spills. Replace any worn gaskets and seals. Before final sealing, inspect the air cleaner housing for proper fit and ensure no obstructed air paths. Once assembled, perform a safety check and start the generator to verify idle and run conditions. The goal is a tight, leak-free seal with smooth linkage operation.

Troubleshooting and when to seek professional help

If fuel leaks after reinstall, recheck the fuel line connections and gasket seating. If the engine starts but runs rough or stalls, re-evaluate the idle and mixture settings and confirm choke operation. In some Briggs & Stratton units, incorrect orientation of linkage or improper gasket seating can cause air leaks, leading to lean running conditions. If you find damaged components, cracks in the carb housing, or corrosion on mounting studs, it’s time to consult a professional or order a rebuild kit. For complex diaphragms or intricate jet assemblies, professional service may be the most efficient option to avoid continued damage. If you rely on the generator for critical power, consider keeping a spare carb kit on hand for quicker turnaround.

The key takeaway is that safe removal and careful reassembly minimize the risk of leaks, flooding, or engine damage. When in doubt, consult the Briggs & Stratton service manual or a qualified technician.

Documentation and safe storage of parts

After removal, label every component to simplify reassembly. Take clear photos of each stage and store screws and small parts in a labeled tray. Store the carburetor and any replacement parts in a clean, dry container to protect from dust and moisture. If you performed a bench-cleaning procedure, allow all parts to dry completely before reassembly. Record the model, serial, and parts kit numbers for future reference, especially if you replace components and need to order more. Proper documentation helps you track maintenance history and ensures you can reproduce the same process if you must remove and reattach the carburetor again in the future.
