How to Make a Generator at Home Without a Battery
Learn a safe, beginner-friendly approach to building a hand-crank generator that can power small devices without a battery. Step-by-step guidance, practical components, and real-world tips for homeowners and property managers.
With this guide, you’ll learn how to build a simple hand-crank generator that can power small devices without a battery. You'll use a dynamo or bicycle alternator, a manual drive, basic rectification, and a protection circuit. The approach emphasizes safety and practical, low-cost components suitable for home projects. This method avoids excessive machining and uses off-the-shelf parts with clear safety steps. It's ideal for emergency prep, hobby projects, or demonstrations of basic generator theory.
What it means to build a generator without a battery
A generator that operates without a stored-energy source, like a battery, relies on mechanical energy to produce electricity on demand. For home experiments, the simplest approach is a hand-crank or pedal-driven device that turns a small generator (dynamo or alternator) to generate electricity directly. The immediate benefit is learning the fundamentals of how generators convert motion into electrical power, ideal for demonstrations, off-grid concepts, or emergency light generation. This approach is intentionally conservative: it prioritizes low-voltage, low-current outputs to keep the project safe and manageable for beginners. When you don’t store energy in a battery, you must regulate output carefully to avoid spikes that could damage lights or devices.
In this guide we’ll emphasize practical, affordable components, clear safety steps, and a modular design that you can scale down or up. The goal isn’t to build a heavy-duty industrial generator, but to provide a safe, working prototype you can use to power small loads like USB gadgets, LED lamps, or a compact fan. Remember, the core idea is generating electricity on demand with human effort, not storing it for later without a battery or storage system.
Safe, simple options: hand-crank and pedal-powered generators
For home experimentation, there are two approachable pathways that do not require a pre-installed battery or large storage system:
- Hand-crank dynamo: A compact generator that is turned by a hand crank. It’s straightforward, portable, and excellent for learning the basics of electromagnetic induction and rectification. The output is DC when paired with a rectifier dedicated to converting the AC produced by some alternators.
- Pedal-powered generator: A bicycle-based dynamo setup uses pedal force to rotate a generator. It’s a practical way to accumulate more sustained energy than a hand crank while remaining within hobbyist limits. Both options emphasize safety, secure mounting, and basic electrical protection to limit current surges.
Key considerations when choosing between these options include your target load (how much current you need), available space, noise tolerance, and how long you expect to operate without external energy storage. In either case, plan for a conservative output—enough to run a USB charger or a small LED load rather than a refrigerator-sized draw.
Core components you'll need (no-battery design)
Designing a no-battery generator requires a handful of core parts. The aim is a compact, safe, low-voltage system suitable for home use:
- DC generator (dynamo) or bicycle alternator: The heart of the system. Look for a unit designed for low to moderate output and with a simple voltage profile.
- Mechanical drive: Hand crank or bicycle chain and sprockets to convert your motion into rotational speed.
- Rectifier: A diode bridge to convert any AC component to DC suitable for electronics.
- Voltage regulator: A small regulator or DC-DC converter to stabilize the output for sensitive devices.
- Fuse or current limiter: Basic protection to prevent overloads and protect devices.
- Wiring, connectors, and insulation: Indoor-friendly, rated for low currents, with proper insulation.
- Enclosure or mounting frame: A safe housing to protect live wiring and to keep the mechanism secure.
- Measuring tools: A multimeter helps verify voltage and current before connecting a load.
This combination keeps the project approachable while teaching key concepts such as conversion of mechanical energy to electrical energy, rectification, and voltage regulation. You can start with a very small load and gradually increase as you gain confidence.
How the electricity flow works (basic electronics)
In a no-battery setup, motion drives a generator to produce AC (in some configurations) or DC directly. If AC is produced, the rectifier converts it to DC. The regulator then smooths and limits the voltage so your device sees a stable supply. The power equation remains P = V × I, but in a DIY, low-power context, you’ll be aiming for safe voltages (often 5–12 V DC) and modest currents. Consumers generally rely on voltage regulation to keep lights steady and prevent damage to USB devices or microcontrollers. Understanding this flow helps you design safeguards, such as fuses and overcurrent protection, before you connect any equipment.
This section highlights why a regulator is essential in a no-battery design: it desensitizes your output to fluctuations in rotation speed and generator load, reducing the risk of surges that could burn out electronics.
Safety considerations and risk management
Electrical projects at home carry risks, particularly when dealing with rotating machinery and live wiring. Follow these safety basics:
- Work in a dry, well-ventilated space and keep water away from equipment.
- Insulate all exposed conductors and never touch live terminals during operation.
- Use a proper enclosure for the rectifier and regulator to prevent accidental contact.
- Include a fuse or current limiter and never bypass protective components.
- Verify that the drive mechanism is securely mounted and cannot slip or jump gears during operation.
If you’re ever unsure, pause and consult a qualified electrician. This project emphasizes learning and safety above high power output.
Realistic expectations: power levels and use cases
A hand-crank or pedal-powered generator designed for home use is best suited for low-power tasks: charging a phone, running a USB-powered adapter, or lighting a small LED array. Don’t expect to run high-wattage appliances without a more substantial, purpose-built setup or energy storage. The value of this project lies in understanding how generator physics translate into usable power and how to regulate and protect delicate electronics. This groundwork supports informed decisions when planning larger backup solutions that may include a battery or supercapacitor storage system in the future.
Troubleshooting and common mistakes
DIY energy projects frequently run into a few recurring issues. Common mistakes include over-tightening belts that stall the generator, neglecting a proper rectifier, bypassing regulation, or failing to fuse the circuit. Symptoms such as flickering LEDs, buzzing from the rectifier, or overheating are signals to pause and recheck connections, insulation, and load compatibility. Always test with a low-load device first and build up gradually. Document your findings to refine the design and ensure safe, repeatable outcomes.
Sizing and planning for a small home backup scenario
Begin with a simple load assessment: identify the devices you want to power without a battery and estimate their startup and running currents. For a compact home setup, target modest DC voltages and currents that your generator can sustain for several minutes of continuous operation. This planning helps you pick a generator type, drive mechanism, and regulation approach that align with your goals. As you gain experience, you can add a storage solution or an energy buffer to extend runtimes and safety margins.
Tools & Materials
- DC dynamo or bicycle alternator(Choose a compact unit suitable for low to moderate output; avoid high-voltage configurations.)
- mechanical drive (hand crank or bicycle chain system)(Secure, stable mounting; ensure smooth operation without binding.)
- rectifier bridge(Converts AC to DC for stable output.)
- voltage regulator / DC-DC converter(Stabilizes output for USB devices or microcontrollers.)
- fuse or current limiter(Protects both generator and load from overload.)
- insulated wiring and connectors(Use appropriate gauge for low-current, indoor use.)
- enclosure or mounting frame(Keeps live components safe and organized.)
- multimeter(Helpful for monitoring voltage and current during tests.)
- safety gear (gloves, eye protection)(Always wear PPE during assembly and testing.)
- ventilation and airflow considerations(Ensure the enclosure does not overheat; provide clearance for air movement.)

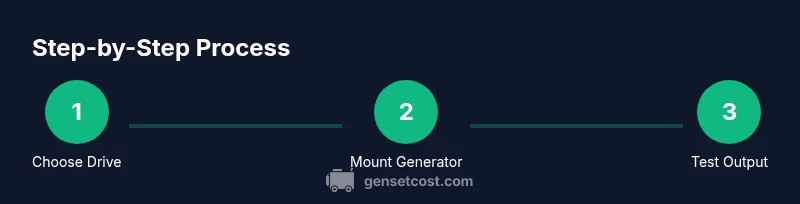

Steps
Estimated time: 2-6 hours
- 1
Gather materials and prepare workspace
Collect all components listed in the tools/materials section and set up a clean, dry workspace with good lighting. Verify you have a safe place to test without risking nearby electronics or water exposure.
Tip: Double-check that all wires are clean and connectors are properly crimped before you begin. - 2
Choose drive method and secure the generator
Decide between a hand-crank or a bicycle drive. Mount the generator firmly to a stable base so it cannot move during operation. Align the drive pulley or sprocket to a comfortable turning radius.
Tip: Use vibration-damping mounts to reduce movement and noise. - 3
Mount the rectifier and regulator in a safe enclosure
Place the rectifier and voltage regulator inside a protected housing. Ensure there is space for heat dissipation and that all terminals are clearly labeled to avoid miswiring.
Tip: Label inputs and outputs clearly and keep test points accessible. - 4
Connect the generator output to the rectifier
Wire the generator’s output leads to the rectifier input according to the polarity and check for secure connections. Keep wires short to minimize resistance and loss.
Tip: Before energizing, inspect insulation and confirm no bare conductors are exposed. - 5
Install the regulator and fuse
Connect the rectifier output to the voltage regulator input, then place a fuse or current limiter in series to protect the load. Ensure rhythmically stable connection paths.
Tip: Choose a fuse rating conservative enough for the smallest load you intend to drive. - 6
Test with a low-load device
Power a small load, such as a USB charger or LED lamp, and monitor voltage. If the output fluctuates, adjust the regulator or the mechanical drive speed to achieve steadier performance.
Tip: Start at a very light load to observe behavior before increasing load. - 7
Assess safety and finalize enclosure
Recheck all connections, ensure there are no exposed wires, and confirm the enclosure is closed and ventilated. Document the test results for future reference.
Tip: Keep a simple log of voltages and any issues observed during testing. - 8
Plan next improvements
Consider adding a small energy buffer (such as a supercapacitor) or exploring a larger generator with a more robust drive if higher power is needed. Evaluate heat, noise, and safety profiles as you scale.
Tip: Experiment incrementally; large changes increase risk.
People Also Ask
Is it safe to attempt this project at home?
Yes, with strict safety practices. Work in a dry area, use PPE, insulate all connections, and avoid high voltages. If you’re unsure, consult a qualified electrician before connecting any devices.
Yes, you can safely attempt this at home by following strict safety rules and using protective gear. If unsure, consult a professional first.
What devices can run from this kind of generator?
Low-power devices like USB chargers, small LED lamps, and microcontroller projects can operate on a no-storage generator with proper regulation. Avoid heavy loads such as appliances that require continuous high current.
Low-power items like USB chargers and small LEDs are suitable for this setup.
Do I need a battery for this to work effectively?
A battery is not required for basic operation, but adding a storage element can smooth out fluctuations and provide longer runtimes for larger loads. Use a storage option only after you understand the generator’s supply limits.
You don’t need a battery for basic operation, but storage can help with longer runtimes.
Can I use a car alternator for this project?
A car alternator can be adapted for educational purposes, but it adds complexity and higher safety considerations. For beginners, a small DC dynamo or purpose-built generator is typically safer and easier to manage.
A car alternator is possible but more complex; start with a simple dynamo for learning.
What maintenance is required for a no-battery generator?
Regularly inspect wiring, connectors, and the drive mechanism for wear. Clean dust and debris from the enclosure, check the rectifier and regulator for overheating, and verify insulation integrity after each use.
Inspect components regularly and keep the system clean and dry.
Watch Video
Key Takeaways
- Choose safe, low-current designs for beginners
- Rectification and regulation are essential for stable DC output
- Secure mounting and proper insulation prevent accidents
- Test progressively with small loads before expanding
