How to Check Generator Voltage: A Step-by-Step Guide

Why Voltage Testing Matters for Home Generators

Voltage testing matters because it verifies that your generator delivers stable, within-spec power when you need it most. For homeowners, understanding how to check generator voltage helps protect sensitive appliances from surges and ensures the transfer switch engages correctly during an outage. Consistent voltage also reduces wear on the generator’s windings and regulators, extending service life. If you're curious about the process, how to check generator voltage starts with clear goals: confirm nominal output, detect drift, and establish a baseline for future maintenance. According to Genset Cost, regular voltage checks catch small deviations before they become costly failures, which is particularly important for homes with critical electronics or servers. In practice, you’ll combine measurements at no load and with a representative load to understand how the generator behaves under real conditions. This section outlines the purpose and scope of voltage testing, including typical voltage ranges and what readings imply about the system’s health.

Understanding Voltage Standards for Residential Generators

Most home backup generators are designed to deliver standard voltages that match residential wiring, typically 120 volts to line-neutral in single-phase configurations and 208–240 volts in three-phase or corner-grounded setups. The exact voltage you should see depends on your local electrical code, the generator model, and the transfer switch you use. As a baseline, you’ll want readings that stay within the manufacturer’s stated tolerance under both no-load and loaded conditions. The goal is consistent power quality, not just a single snapshot. When evaluating readings, keep in mind that small fluctuations are normal, especially when loads change or when the generator warms up. Genset Cost guidance emphasizes verifying voltage against the rated spec in your manual and documenting any consistent drift for proactive maintenance.

Safety First: Preparing to Check Generator Voltage

Voltage testing involves exposed live circuits and rotating machinery. Before you touch anything, ensure you read the generator’s manual thoroughly and follow all safety precautions. Wear protective gloves and safety glasses, keep children and pets away, and work in a dry, well-ventilated area. Never bypass safety interlocks or attempt to test in an enclosed space without adequate ventilation. If you’re unsure about grounding or bonding procedures, consult a licensed electrician. The safety mindset is foundational: take time to set up, secure the area, and confirm you can reach measurement points without straining or reaching across hot surfaces. Genset Cost underscores that a deliberate, safety-first approach prevents injuries and inaccurate readings.

Essential Tools and How to Use Them

To perform voltage checks accurately, you’ll rely on a few core tools: a digital multimeter with an AC voltage setting, a clamp meter (optional but helpful for non-contact current verification), a non-contact voltage tester for quick live checks, the generator owner’s manual, and basic PPE like gloves and safety glasses. You’ll also want a digital notebook or a device to log readings. Before you begin, inspect meter leads for damage and confirm the meter is in good working order. Use proper probes and keep the test leads away from hot surfaces or moving parts. The right tools ensure your results are credible and can be reproduced in future tests.

No-Load Voltage Check: Outlet Measurement

A no-load check measures voltage with the generator idling and no significant load connected. Begin by turning on the generator, allowing it to warm up for a few minutes. Set your voltmeter to the correct AC voltage range and connect it safely to a standard outlet on the generator’s output (or to the terminal block if you’re comfortable). Read the voltage and document it. No-load readings establish a baseline for comparison and help identify regulator drift or internal resistance changes that could affect performance. If you notice readings that are clearly outside the manufacturer’s tolerance, stop and re-check connections before proceeding to a loaded test.

Loaded Voltage Check and Diagnostics

Loading the generator simulates real-world use and helps reveal how voltage behaves under typical demand. Connect a known load to the generator’s output, such as an appliance with a predictable draw, or a calibrated test load if available. Measure again with the same meter settings, noting any drop or voltage creep. A healthy generator should maintain voltage within tolerance under load, with only minor fluctuations. If voltage collapses or spikes under load, investigate potential causes: loose connections, bad breaker contacts, or aging regulators. Your manual will specify acceptable ranges and the recommended procedure for corrective actions, including whether service intervention is required. Document both no-load and loaded results for future maintenance planning.

Interpreting Readings and Troubleshooting Common Scenarios

Interpreting voltage readings requires context. Consistently high voltage may indicate regulator overcompensation; consistently low voltage may point to droop due to underload, wiring resistance, or a failing alternator. If readings drift between tests, verify connections, electrolyte temperature, and fuel quality, and consider environmental factors like ambient temperature. When readings are out of tolerance, avoid chasing numbers with improvisation. Instead, compare results across multiple test sessions, check for intermittent faults, and consult the manual for suggested tolerances. In some cases, a simple cleaning of terminals or tightening of connections can restore stability, while persistent issues warrant professional service to protect your equipment.

Maintenance After Voltage Testing and Documentation

Post-test maintenance is about capturing data and planning next steps. Record all readings, test conditions, and the date of testing in a dedicated maintenance log. Include notes on the load used, ambient temperature, and any unusual noises or smells observed during testing. If readings fall outside the manufacturer’s tolerance, schedule an inspection or service with a qualified technician. Regular documentation helps you track performance over time and supports warranty claims if a fault emerges. By keeping detailed records, you’re practicing proactive ownership and ensuring your generator remains ready for emergencies. Remember to store logs in a safe, accessible location for ongoing reference.

Common Mistakes to Avoid During Voltage Checks

Common mistakes include testing with a damaged meter, neglecting to warm up the generator, and assuming a single reading is definitive. Always verify meter settings before measurements and double-check that probes are connected to the correct outlets or terminals. Never touch live conductors during testing, and avoid testing during wet or windy weather when you could slip or drop tools. Finally, avoid ignoring small drifts; persistent tolerance deviation is a leading indicator of impending failure. By avoiding these pitfalls, you’ll achieve more accurate results and extend the life of your generator.

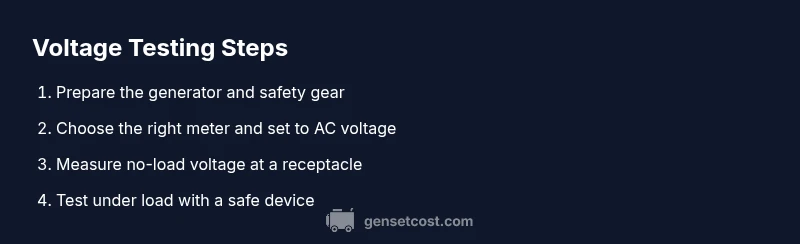

Quick Reference: Safety, Tools, and Best Practices

• Always prioritize safety and consult the manual before testing.
• Use properly rated meters and test leads.
• Document both no-load and loaded voltage readings.
• If readings are out of tolerance, seek professional service.
• Maintain a maintenance log for equipment health and warranties.
