Check Generator Voltage with a Multimeter: A DIY Guide

Why Checking Generator Output Voltage Matters

According to Genset Cost, confirming the generator’s voltage output is a fundamental step in validating readiness for power outages. Accurate voltage ensures devices and appliances operate correctly and helps prevent premature wear on motors, chargers, and electronics. A voltage reading that matches the unit’s nominal rating indicates the alternator and regulator are delivering the expected power. Conversely, readings that differ from the label can signal issues with the generator’s wiring, voltage regulator, or fuel system that merit further inspection. This knowledge is essential for homeowners and property managers who rely on standby power during outages and want to minimize disruption to critical systems such as sump pumps, HVAC controls, and security equipment.

Throughout this guide, you’ll learn how to prepare safely, perform measurements with a multimeter, interpret results in context, and know when to seek professional help. The goal is practical, repeatable testing that you can perform confidently, protect electrical safety, and avoid guessing.

Safety First: Key Precautions

Testing generator voltage involves working with live electrical equipment, which carries the risk of shock, burns, or fire if not done correctly. Always start with a clear safety plan and follow manufacturer instructions. Wear appropriate PPE such as insulated gloves and safety glasses when handling exposed terminals. Work in a dry, well-ventilated area away from standing water, and ensure the generator is on a stable surface with room to move around. Never bypass safety covers or tamper with protective devices. Read the nameplate and manual to confirm voltage ratings and testing procedures specific to your model.

Genset Cost emphasizes that if you’re unsure about any step, stop and consult a qualified electrician. When working with generators, it’s better to be cautious than to risk a shock or damage to property.

Tools and Preparations

Before you begin, gather the essential tools and confirm your environment is suitable for testing. You’ll need a digital multimeter capable of measuring AC voltage, properly rated test leads, and the generator’s manual for model-specific guidance. Check the meter’s battery and the leads for damage. If you plan to perform a loaded test, ensure you have a safe method to introduce a known load or use a compatible load bank. Clear space around the generator so you can move freely and avoid tripping hazards. Finally, make sure you know the correct safety procedures for your model—some units require grounding checks or specific terminals for measurement.

This preparation reduces the chance of misreading, equipment damage, or personal injury during voltage testing.

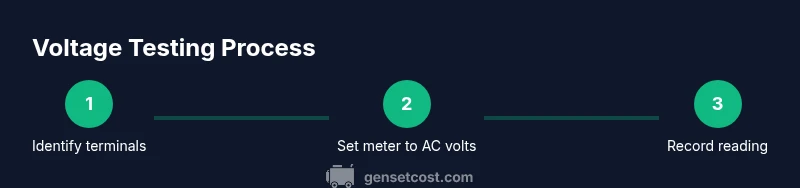

Step-by-Step: How to Measure Voltage with a Multimeter

This section provides a practical approach for measuring generator voltage. It covers two common scenarios: no-load (standby) testing and loaded testing. Follow the steps in the order listed, and always compare results against the manufacturer’s nominal voltage on the nameplate. Remember to power down only as required by the test phase and never touch exposed conductors with bare skin.

1. Identify the output terminals or receptacles to measure from. Locate the main output lugs or the testing points specified in the manual. 2) Prepare the multimeter and test leads by turning the meter off and inspecting probes for wear. Set the multimeter to AC voltage within the appropriate range for your generator’s expected output. 3) Start the generator and bring it to the recommended idle or running speed per the manual. If you’re performing a loaded test, engage the load according to the manufacturer’s guidelines. 4) Connect the black lead to the neutral/ground reference and the red lead to the hot output terminal you’re testing. Keep your hands clear of moving parts and hot surfaces. 5) Read the voltage on the meter, note the value, and compare it to the nominal rating printed on the nameplate. If the reading sits outside the manufacturer’s tolerance, stop the test and re-check connections, fuses, and the regulator. 6) After recording measurements, turn off the generator safely, disconnect the meter, and store your tools. Close any access panels and verify that all safety devices are reset.

If you’re unsure about any step, consult the manual or a licensed electrician.

Interpreting Readings and Troubleshooting Common Scenarios

Interpreting voltage measurements requires context. First, identify the nominal voltage from the nameplate, which could specify a single value (e.g., 120 V or 240 V) or a split-phase rating (e.g., 120/240 V). Most generators have a voltage tolerance range, often described in the manual. Readings within the acceptable range suggest the generator’s alternator, regulator, and wiring are functioning properly under test conditions. A reading significantly lower or higher than the nominal value can indicate a faulty regulator, loose connections, or a damaged winding. In some cases, an uneven voltage between phases suggests a balance problem in a multi-phase system.

Common issues to inspect include loose terminal connections, corroded contacts, a failing voltage regulator, or an underperforming alternator due to wear. If symptoms persist after rechecking connections and ensuring the load is appropriate, schedule a professional inspection. Regular checks help prevent unexpected outages and extend the life of your backup power system.

Maintenance Tips for Consistent Measurements

To keep voltage readings reliable over time, perform periodic checks as part of your maintenance routine. Keep a written log of nominal voltages, test dates, and observed readings. Clean and inspect the output terminals and connectors for corrosion, and replace damaged leads immediately. Store test equipment properly in a dry place, and periodically verify your multimeter’s accuracy with a known reference source if available. When testing, always use the same method (no-load vs. loaded) to track trends and detect gradual drift in performance. Routine checks can catch questions early and avoid costly surprises during an outage.

When to Call a Pro

If measurements consistently fall outside the expected range, or if you notice buzzing, heat, or burning smells during testing, stop immediately and contact a licensed electrician or the manufacturer’s support line. Some voltage issues require specialized equipment, precise grounding, or a professional regulator recalibration. For property managers, establishing a maintenance contract with a certified technician can ensure your backup power system remains reliable under pressure and complies with local electrical codes.
