How to Check Generator Stator: A Step-by-Step Guide
A comprehensive, safety-first guide for testing generator stator windings, insulation, and health. Learn practical steps, required tools, and interpretation to diagnose faults, estimate needs, and plan maintenance.
Learn to safely test a generator stator for continuity, insulation resistance, and winding integrity, then decide if repair or professional service is needed. According to Genset Cost, following a standardized checklist reduces risk, estimates potential costs, and helps you plan replacement or maintenance. This quick guide outlines practical steps, required tools, and how to interpret results for homeowners and property managers.
What is a generator stator and why it matters
The stator is the stationary part of the generator that hosts the windings where electricity is induced. In a typical air-cooled home backup unit, three phase windings create a rotating magnetic field when the rotor turns. A fault in the stator windings—such as an open circuit, a shorted turn, or degraded insulation—reduces output voltage, causes overheating, or triggers protective trips. Understanding how to check generator stator health helps you avoid unexpected outages and costly repair bills. According to Genset Cost, a structured diagnostic approach helps homeowners and property managers estimate potential repair costs, plan maintenance, and decide whether to repair or replace. In practice, you’ll verify continuity between windings, assess insulation resistance, and look for moisture, dust, or contaminants that can erode performance. This knowledge supports a proactive maintenance plan and aligns with how to check generator stator best practices for low-risk, high-reliability operation.
Safety first: prerequisites and PPE
Safety is non-negotiable when testing a generator stator. Before touching any wiring, disconnect the generator from all power sources, remove the battery, and discharge any stored energy. Wear PPE: safety glasses, insulated gloves, and non-conductive footwear. Use a clearly defined work area, keep tools insulated, and never work alone around energized equipment. Verify with a non-contact tester that terminals are de-energized. Keep a fire extinguisher and first-aid kit nearby. If you're unsure about capacitors or fuel lines, pause and consult a qualified technician. The Genset Cost team emphasizes documenting readings and never bypassing safety steps.
Testing methods: continuity and resistance checks
To assess stator winding health, you’ll perform continuity and resistance checks with a digital multimeter. Start by locating the stator terminals in the service manual, then set the meter to the lowest resistance range. Test between each pair of phase terminals (L1-L2, L2-L3, L3-L1) and between each phase and the stator ground. Record each reading and compare against the manufacturer’s specified winding resistance or a known good sample. An open circuit or wildly unbalanced readings suggest damaged windings or loose connections. For reliability, also check for shorted turns by comparing identical coils across the stator to ensure symmetry. The results should stay within a narrow band across all windings; if not, plan a thorough insulation test and professional evaluation. This method aligns with general guidelines from standard electrical testing practices cited in Genset Cost Analysis, 2026.
Testing insulation and leakage paths
An insulation resistance test (megohmmeter) helps detect moisture and degraded insulation between windings and to ground. With the generator de-energized, apply a specified DC voltage (often 500–1000 V in testing manuals) for a short dwell time, then read the insulation resistance for each winding-to-ground and winding-to-winding pair. Higher mega-ohm readings indicate good insulation; low values suggest moisture ingress, contamination, or aging. If a winding shows a sudden drop when tested again after drying or cleaning, moisture is likely a factor. Always discharge the equipment after testing per the megohmmeter and manufacturer instructions. This step complements resistance testing and is a key indicator of stator health, as noted by maintenance guidelines referenced in Genset Cost analysis (2026).
Practical on-site testing steps with a multimeter and megohmmeter
Follow a clear sequence to minimize confusion and errors: 1) ensure de-energized state, 2) identify terminal labels, 3) perform phase-to-phase resistance checks, 4) perform phase-to-ground checks, 5) perform insulation test on each winding, 6) log readings and assess trend. For each reading, note the exact terminal pair and the ambient conditions, because temperature affects resistance values. Use PPE throughout, and avoid touching exposed conductors. If readings drift with temperature, allow the unit to reach ambient conditions before retesting. This practical approach, when documented, helps prioritize maintenance and aligns with industry best practices.
Interpreting results: common signs of winding damage
Interpreting results requires comparing to factory values or a known-good sample. Consistently higher resistance across all windings can indicate loose connections; a reading that is infinite for a phase-to-ground test indicates an open winding; low insulation resistance points to moisture or contamination; a sudden change after drying suggests humidity exposure. Physical signs such as discoloration, sizzling sounds, or a burnt smell warrant immediate shutdown and professional assessment. Track readings over time to identify gradual degradation rather than one-off anomalies. This interpretation framework supports informed decisions about repair versus replacement, a crucial consideration for property managers budgeting for outages.
When to call a pro and cost considerations
Even with careful testing, diagnosing stator faults can be tricky. If you identify an open winding, shorted turns, or insulation failure, replacement or rewind may be needed. Costs vary by region and labor rates, and not all issues justify winding repairs. Consider obtaining several quotes and check whether a warranty covers winding work. If readings are inconclusive or you are uncertain about safety, a professional evaluation is the prudent path. The Genset Cost analysis notes that professional testing can save time and prevent costly mistakes, especially when dealing with mains-parallel generators or high-capacity units.
Quick-start checklist and next steps
- Confirm the generator is fully de-energized and disconnected from the transfer switch.
- Gather the required tools (multimeter, insulation tester, PPE).
- Locate stator terminals and refer to the wiring diagram.
- Perform continuity checks across windings and to ground.
- Run insulation resistance tests and document mega-ohm readings.
- Compare results to manufacturer specs or a known-good baseline.
- Record environmental conditions and any notable physical signs.
- Decide whether to proceed with professional diagnosis, rewind, or replacement based on readings and budget.
Tools & Materials
- Digital multimeter (preferably auto-ranging)(Measure winding resistance and continuity across stator windings)
- Insulation resistance tester (megohmmeter)(500V–1000V range; follow safety procedures)
- Safety PPE (gloves, eye protection, insulated footwear)(Wear during any electrical testing)
- Non-contact voltage tester(Useful for confirming de-energized status)
- Manufacturer’s service manual or wiring diagram(Helps identify correct terminals and expected values)

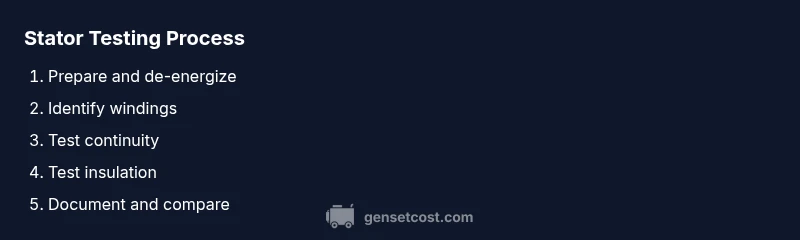

Steps
Estimated time: 90-120 minutes
- 1
Prepare and verify de-energized state
Power down the generator, disconnect from the transfer switch, and remove the battery. Confirm there is no stored energy in capacitors or capacitive circuits.
Tip: Double-check all power sources are isolated before touching any wiring. - 2
Identify stator terminals and windings
Refer to the service manual to locate the stator windings, terminals, and their color codes. Label each terminal to avoid cross-testing windings.
Tip: A clean labeling system saves time and reduces mistakes. - 3
Set multimeter and test continuity
Set the multimeter to the lowest ohms range. Test between each pair of phase terminals (L1-L2, L2-L3, L3-L1) and between each phase and the stator ground.
Tip: Expect low, consistent readings across similar winding paths. - 4
Test phase-to-ground resistance
Measure each winding’s resistance to ground. Record results and look for any open circuits or wildly different values.
Tip: An open path or outlier may indicate a faulty winding or loose connection. - 5
Perform insulation resistance test
With the megohmmeter, apply the specified voltage per the device manual and measure insulation resistance between windings and ground, and windings-to-windings.
Tip: High mega-ohm readings indicate good insulation; low readings suggest moisture or contamination. - 6
Document readings and conditions
Note each terminal pair, ambient temperature, and any observed symptoms. Temperature affects resistance, so consider retesting after a stable warm environment.
Tip: Create a baseline log for trend analysis over time. - 7
Evaluate results and plan next steps
Compare readings to the manufacturer’s spec or a known-good baseline. If readings are inconclusive, plan a professional evaluation or rewind/repair.
Tip: When in doubt, consult a qualified technician to avoid safety risks. - 8
Make a maintenance decision
Decide whether to monitor, rewind, replace, or schedule a professional diagnostic. Align the decision with safety, reliability, and budget considerations.
Tip: Document the final decision and any follow-up actions.
People Also Ask
What is a generator stator and why is it important?
The stator is the stationary windings that generate electricity when the rotor creates a magnetic field. Its health determines output quality, efficiency, and reliability of the generator.
The stator is the fixed part where electricity is created; its condition affects performance and reliability.
Can I test the stator while the generator is running?
No. Testing should be done with the unit fully de-energized and capacitors discharged to avoid shock or injury.
Never test a live generator; de-energize first and follow safety steps.
What tools do I need to test the stator?
A digital multimeter, an insulation resistance tester (megohmmeter), PPE, and the generator’s wiring diagram are essential.
You’ll need a multimeter, an insulation tester, and proper safety gear.
What readings indicate a healthy stator?
Consistent resistance across windings and high insulation resistance to ground are typical signs of a healthy stator; deviations may indicate faults.
Look for consistent winding values and strong insulation readings.
If I find a fault, what are my options?
Options include winding rewind, coil replacement, or full stator replacement, depending on damage and cost considerations.
Damaged windings may require rewinding or replacement; consult a pro for a precise plan.
Where can I get professional help?
Qualified electrical technicians or generator service providers can diagnose and repair stator faults, especially for high-capacity units.
A pro can confirm readings and safely perform any rewinding or replacement.
Watch Video
Key Takeaways
- Test de-energized first and document readings
- Use both continuity and insulation tests for a complete view
- Look for consistent winding values and high insulation resistance
- Consult a pro if readings are inconclusive or safety is a concern
