How to Check Generator Brushes: A Practical Guide
Learn how to check generator brushes, identify wear signs, and safely replace them. This educational guide from Genset Cost walks homeowners through tools, testing methods, and maintenance timing to keep backup power reliable.
According to Genset Cost, checking generator brushes starts with safety and identifying wear signs. Power down the unit, disconnect the battery, and remove access panels. Inspect brush length, spring tension, and the condition of the commutator for scoring or arcing. If brushes are worn or uneven, follow the manufacturer’s replacement steps or consult a qualified technician.
What Are Generator Brushes and Why They Wear
Generator brushes are carbon blocks that conduct current from the stationary parts of the generator to the rotating armature. They ride on the commutator and rely on spring tension to maintain contact. Over time, brushes wear down due to electrical arcing, heat, and mechanical motion. Worn brushes can cause voltage dips, uneven performance, or increased sparking. Regular inspection helps homeowners identify issues before they lead to failure. In the context of how to check generator brushes, you’ll look for length loss, glazing, and uneven contact that signals a replacement is due. The goal is to catch wear early to avoid unexpected outages and costly repairs, especially during peak load periods in 2026.
Safety First: Prepare for Inspection
Safety is non-negotiable when servicing a generator. Begin by turning off the unit and engaging lockout/tagout to prevent accidental restarts. Disconnect the battery if applicable and allow the system to cool completely before touching any components. Work in a well-ventilated area away from fuel sources, and wear eye protection, gloves, and non-slip footwear. Keep tools insulated and organized so you don’t accidentally create a short. If you smell fuel, notice fuel leaks, or observe sizzling noises, stop immediately and seek professional help. This stage sets the foundation for a safe and effective check of the brushes.
Signs Your Brushes May Need Replacement
Brush wear presents in several tangible ways. Look for brushes that appear shorter than the minimum recommended length, uneven wear on one side, glazing on the brush surface, or visible scoring on the commutator. Excessive sparking during operation, voltage dips, or inconsistent RPM can also indicate brush problems. Listen for unusual noises or rhythmic arcing that coincides with engine rotation. If you notice any of these signs, plan for a replacement or detailed inspection by a qualified technician. Remember, early identification can prevent catalyst failures in a power outage.
Visual Inspection Checklist for Brushes and Mounts
A thorough visual check helps you gauge brush health without disassembly. Inspect the brush holder for secure mounting and check the spring tension by gently pressing the brush to feel for consistent resistance. Look for signs of corrosion on metal parts, damaged springs, or loose wires. Verify that the brush end is seated flat against the commutator and that there’s no debris lodged in the holder. Document any discrepancies with photos so you can reference them when ordering parts or discussing the issue with a technician. This is a critical step in how to check generator brushes and plan replacements.
Electrical Tests You Can Do Safely
Beyond visuals, some non-destructive tests can indicate brush condition. With the generator powered down and the battery disconnected, use a multimeter to measure brush resistance and continuity to the commutator circuit. Compare readings to the generator’s service manual specifications; large deviations suggest replacement or further investigation. If you’re not comfortable with electrical testing, skip this step and rely on visual cues and a professional inspection. Safety remains the top priority throughout any measurement process.
Replacement Considerations and What to Buy
If the brushes show wear beyond the manufacturer’s minimum length, plan for replacement. Install only brushes that match your model’s specification; incorrect brush size or grade can cause accelerated wear or electrical faults. Along with new brushes, inspect or replace springs if they show fatigue. Confirm the part numbers with your owner’s manual or the manufacturer’s parts sheet, and keep a spare kit for future maintenance. This careful preparation helps ensure the long-term reliability of your standby power system.
Maintenance Scheduling and Cost Considerations
Maintenance timing for generator brushes depends on load, duty cycle, and environmental conditions. Manufacturer recommendations vary, so refer to your manual for the expected service intervals. Costs include brush components, potential seal replacements, and labor if a professional service is required. While brush replacements can be a modest upfront cost, neglecting wear can result in more extensive and expensive failures. Planning routine checks during off-peak times helps spread maintenance costs and minimizes outages.
Common Pitfalls and How to Avoid Them
Common mistakes include working on a live or hot generator, neglecting proper lockout/tagout, and using improper brushes or springs. Avoid forcing panels, mixing fasteners, or applying lubricants where electrical contacts reside. Take clear photos before disassembly, label components, and follow the service manual step-by-step. If you’re ever unsure, consult a qualified technician rather than guessing or improvising. Proper planning reduces risk and ensures you can confidently perform future inspections.
Next Steps: When to Call a Professional
If you identify excessive wear, inconsistent resistance, or signs of rotor or stator damage beyond brush wear, it’s prudent to engage a professional technician. A trained pro can verify brush type, measure wear under load, and test the entire charging circuit. Routine checks, even when brushes appear healthy, can be a cost-effective way to extend generator life and ensure reliable performance during outages. The goal is proactive maintenance that minimizes downtime and expense over the long term.
Tools & Materials
- Safety gloves (ANSI-rated)(Protect hands during inspection)
- Insulated screwdriver(For removing access panels)

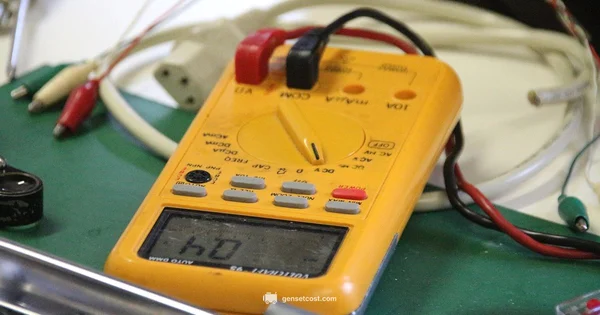

- Multimeter(Measure brush resistance/continuity)
- Flashlight(Illumination inside panels)
- Replacement carbon brushes(Only if you know the exact size)
- Owner’s manual or brush part number(Identify correct brush type)
- Voltage tester (optional)(Verify non-live panels if needed)

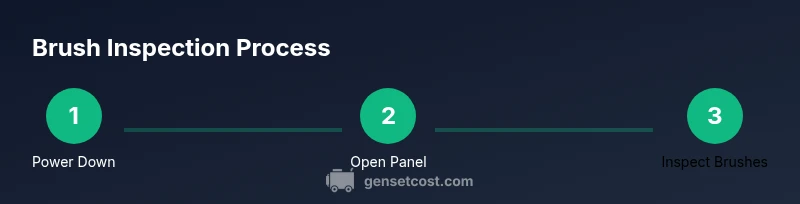

Steps
Estimated time: Estimated total time: 45-60 minutes
- 1
Power down and disconnect safely
Shut off the generator, switch off fuel supply if applicable, and disconnect the battery. Wait for all moving parts to stop and the unit to cool before touching any components. This first step prevents electric shock and prevents accidental restart during inspection.
Tip: Use lockout/tagout and keep a written record of the shutdown time. - 2
Open the access panel professionally
Remove outer covers with the proper screwdriver; avoid forcing panels. Gently lift and secure the panel to expose the brush area, keeping track of all fasteners in a labeled tray.
Tip: Take a quick photo of the layout before removing parts for reference. - 3
Locate brush assemblies
Find the brush holders, springs, and leads. Identify the brush end that contacts the commutator and ensure you can access it without displacing other components.
Tip: Check for any signs of debris that could affect contact quality. - 4
Measure brush length and spring tension
Use a ruler or calipers to measure each brush length and gently test spring tension by applying light pressure. Compare results to the manufacturer’s specifications in your manual.
Tip: Record measurements for future reference and ordering parts. - 5
Inspect the commutator surface
Look for scoring, glazing, or uneven wear on the commutator. Note any rough patches, copper showing, or discoloration that could indicate improper contact.
Tip: Do not tap or scrape the commutator aggressively; treat it with care. - 6
Check brush seating and spring condition
Push brushes to confirm seating and assess spring integrity. Springs should resist evenly and return to their original length without fatigue.
Tip: Replace springs if they appear stretched or corroded. - 7
Decide on replacement or service
If brush length is below spec or visible damage exists, plan for replacement. If not, reseat and reassemble, then test the unit to confirm proper operation.
Tip: Use manufacturer parts to avoid compatibility issues.
People Also Ask
What are generator brushes?
Generator brushes are carbon blocks that conduct current from the stationary parts to the rotor. They wear with use and must be checked regularly to avoid performance issues. Regular inspection helps prevent unexpected outages.
Brushes transfer current to the rotor and wear over time; regular checks help prevent outages.
When should I replace generator brushes?
Replace brushes when they are shorter than the minimum length or show significant wear, glazing, or arcing. If in doubt, consult a technician to avoid damage to the commutator.
Replace worn brushes when they’re below spec or show damage; seek a pro if unsure.
Can I replace brushes myself?
DIY replacement is possible on some models with the right tools and a precise brush type. Others require professional service due to precision alignment. Always consult your manual before attempting.
Some models allow DIY replacement; others require a technician.
What safety precautions are needed?
Always power down, disconnect the battery, and use PPE. Work in a ventilated area away from fuel. Never touch live components.
Power down, wear PPE, and avoid live components.
Will replacing brushes fix all problems?
Brush replacement often resolves wear-related issues but won’t fix rotor or stator damage. Test after replacement and investigate other faults if problems persist.
Brush replacement helps wear issues, not all electrical faults.
How long do brushes last?
Brush lifespan varies with load, duty cycle, and environment. Follow the manufacturer’s min-length spec and replacement intervals for your model.
Lifespan varies; check your model’s specs for replacement timing.
Watch Video
Key Takeaways
- Inspect brush wear before performance declines
- Power down and secure unit before inspection
- Compare brush length to spec and replace if below minimum
- Replace worn springs or brushes to prevent arcing
- Keep a spare brush kit for maintenance
