How to Clean Generator Brushes: A Step-by-Step Guide

What are generator brushes and why cleaning matters

Generator brushes are carbon graphite blocks pressed against a rotating commutator to maintain electrical contact as the engine runs. Over time, electrical arcing and friction wear produce carbon dust and varnish-like deposits that can degrade contact quality, increase resistance, and affect performance. Regular cleaning reduces the risk of misfires, overheating, and uneven wear, extending the life of the brush assembly and protecting the rotor and stator. Not all generator models have easily accessible brushes, and some modern units use sealed or brushless designs. Before you attempt any cleaning, consult your owner's manual to confirm that brushes are serviceable and learn the recommended interval and approved cleaning methods for your specific model. If you do access the brush area, work in a well-ventilated space away from ignition sources and wear appropriate PPE. In many cases, the goal isn’t to remove every speck of dust, but to clear loose debris and verify that the brushes still have adequate spring tension and contact width.

Different brush materials (carbon, graphite) wear at different rates depending on load, speed, and duty cycle. Visual signs of wear include reduced brush length, glazing, cracks, or uneven contact surfaces on the commutator. If the brush wears to the minimum length or the contact surface appears compromised, replacement is typically required rather than re-cleaning. The benefits of proper cleaning include smoother running, reduced electrical noise, and improved voltage stability. Always remember safety first: power down, disconnect power, and ensure the unit cannot be started accidentally.

Safety and preparation before you start

Safety is primary when servicing generator components. Start by locating the manual for your model and follow its specific guidance. In general, you should:

• Stop the engine and remove the key or disconnect the battery to prevent accidental startups.
• Shut off the fuel supply and allow the engine to cool to avoid burns or ignition hazards.
• Work in a well-ventilated area; electrical parts can generate fine dust that you don't want inhaled.
• Wear PPE: safety glasses, gloves, and a dust mask as needed.

These precautions prevent injuries and reduce the chance of dust or fuel exposure during the cleaning process. If you smell fuel or see signs of leaking, postpone cleaning and address the issue first. Remember that some units have sealed or brushless designs where brush maintenance is not applicable; in those cases, skip to routine preventative maintenance as advised by the manufacturer.

Tools and materials you'll need

Having the right tools on hand keeps the process smooth and reduces the risk of damaging components. Gather the following essentials before you start:

• Safety gear: safety glasses and non-slip gloves.
• Dry, lint-free cloths for wiping surfaces without leaving fibers.
• Small nylon brush or soft-bristled brush to dislodge dust.
• Compressed air canister (set to low pressure) for gentle dust blow-out.
• A flashlight or headlamp for better visibility inside the brush chamber.
• A small flat-head screwdriver or nut driver to remove access panels.
• Optional: isopropyl alcohol (70% or less) only if the manufacturer allows it, and with complete surface drying before reassembly.

Always verify the manufacturer’s recommendations about liquids in the brush area. Use dry methods as the default approach to minimize the risk of moisture intrusion into electrical connections.

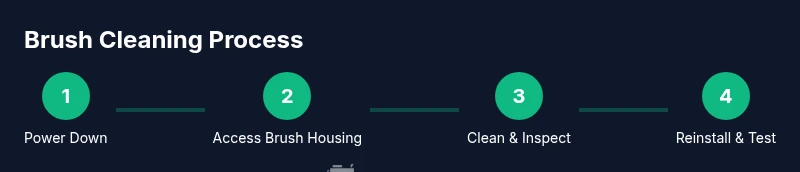

Cleaning techniques: dry cleaning, air, and careful wiping

The preferred approach for most generator brush areas is dry cleaning. This minimizes moisture exposure and reduces corrosion risks. Steps include:

• Gently brush away loose dust with a soft nylon brush, working parallel to the commutator to avoid gouging.
• Use brief, low-pressure bursts of compressed air to dislodge stubborn dust—keep the can upright and at a safe distance to avoid propellant spray contacting windings.
• Wipe contact surfaces with a lint-free cloth; if residue is stubborn, dampen lightly with isopropyl alcohol only if the manufacturer permits it, then allow surfaces to dry completely before reassembly.

Important cautions:

• Do not use water directly on brushes or electrical contacts.
• Do not apply solvents that leave residues; ensure full evaporation before powering the unit.
• Avoid prying or bending the brushes; keep springs and retainers intact to maintain proper tension.

Inspecting wear and deciding on replacement

Inspecting brushes thoroughly helps you decide whether cleaning is enough or replacement is required. Look for:

• Brush length visibly shorter than recommended by the manufacturer.
• Glazing, cracks, or uneven wear on the brush contact surface.
• Irregular spring tension or brushes sticking in their holders.

If wear indicators show 50% or more reduction in length, or the contact surface is compromised, replacement is typically recommended. Some models use standardized brush sizes; having exact part numbers from the manual makes shopping for replacements safer. For units with brushless designs, skip this section and proceed with general maintenance. Document any wear findings in your maintenance log and schedule a replacement if needed to prevent uncertainty during a power outage.

Reinstallation, seating, and testing after cleaning

Reinstall brushes only after the chamber and contact surfaces are completely dry. Ensure brushes sit squarely in their holders and that springs apply consistent pressure without sticking. Reassemble the access panel and fasten screws to the manufacturer’s torque specs. Reconnect the battery and fuel supply if applicable, then perform a no-load start to observe brush seating and commutator rotation. Listen for unusual grinding, squealing, or sparking, and stop the test if anything seems off. If everything looks and sounds normal, monitor the unit during the next few starts under light load to confirm stable operation.

Maintenance cadence and long-term care

Set a routine that fits your usage pattern. For standby or backup generators used intermittently, annual inspection plus light dusting of the brush area is often sufficient. For units in high-dust environments or with heavy load cycling, consider biannual checks or quarterly dusting. Maintain a simple log noting inspection dates, wear observations, replacements, and who serviced the unit. This habit helps you anticipate needs before outages occur and supports budgeting for parts or professional service when necessary. If you’re unsure about any step or the unit shows signs of abnormal operation, consult a qualified technician quickly to prevent further damage.

Authority sources and further reading

For additional guidance, consult reputable sources on electrical safety and generator maintenance:

• OSHA Electrical Safety: https://www.osha.gov/electrical-safety
• NFPA – National Fire Protection Association: https://www.nfpa.org
• NIST – National Institute of Standards and Technology: https://www.nist.gov
